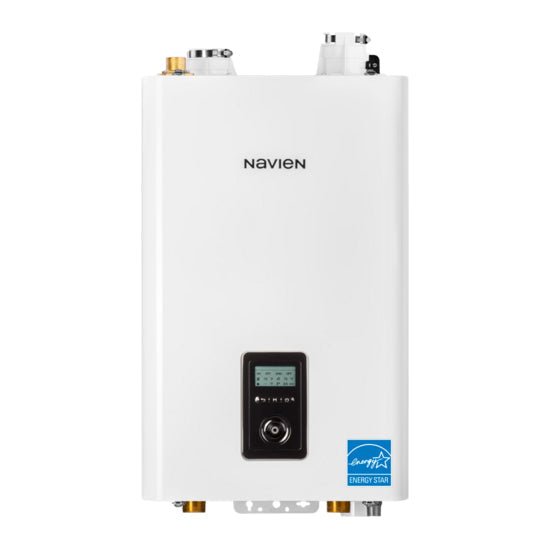

Navien NFB-200H – Condensing Heating Boiler – 199,000 BTU

The Navien NFB-200H is a high-efficiency condensing heating boiler designed for residential and light commercial applications. Rated at 95% AFUE and Energy Star certified, it delivers up to 199,900 BTU/hr input with a DOE heating capacity of 183,000 BTU/hr. The boiler features a 15:1 turndown ratio for precise load matching and energy savings. Its patented stainless steel fire tube heat exchanger is paired with a non-metallic condensate base for durability and corrosion resistance. The NFB-200H includes advanced controls, supports common venting and cascading, and is approved for high-altitude installations.

Features

• 95% AFUE – Energy Star certified
• 15:1 turndown ratio for efficient performance across variable loads
• Patented stainless steel fire tube heat exchanger with non-metallic condensate base
• 2″ venting up to 65 ft, 3″ venting up to 150 ft
• Advanced controls with intuitive interface and Setup Wizard
• Built-in powered connections for 3 zone valves or 3 zone pumps
• Common venting for up to 8 units and cascading for up to 16
• Approved for high altitudes up to 10,100 ft (NG and LP)
• Field convertible with included gas conversion kits
• NaviLink Wi-Fi compatible for remote control and monitoring (sold separately)

Applications

• Residential hydronic heating systems
• Light commercial buildings
• Installations requiring scalable boiler banks
• High-efficiency replacements for aging systems
• Multi-zone systems with valves or pumps
• Indoor wall-hung boiler installations with flexible venting options

NFB-200H premium features and benefits

2″ venting up to 65′;
3” up to 150’ (including schedule 40 PVC).Vent Installation Detector (VID)for added safety.

Dual Venturi system creates better combustion control, turndown ratio and easy field gas conversions.

Patented stainless steel fire tube heat exchanger Navien’s innovative heat exchanger design is ASME‑Certified,“H” Stamped, and reduces high-stress point weld failures common on other combi-boilers.

Low gas pressure operation. Negative pressure regulating gas valveensures maximum performance all the way down to 3.5″ of water column on natural gas and 8″ of water column on propane gas.

Advanced user interface with Setup Wizard is made easy with backlit panel, click-wheel control and intuitive text.

Built-in control for a boiler pump, 3 zone pumps or 3 zone valves

1/2″ gas pipe capability up to 24′ (subject to local codes). Cuts installation time, no need to install new gas lines for retrofit applications.
